Don presented a great demo on tool sharpening in April. Here’s the video:
As part of the demo, Don wanted to share some handouts.
Settings for Vari-Grind
| Tool | VG Jig Setting | Gauge Block | V-notch Shim |
|---|---|---|---|
| Calibration | 6-1/4″ | 1-1/2″ | — |
| 60° Bowl Gouge | 6-1/4″ | 1-1/2″ | — |
| 70° Micro-bevel | 6-1/4″ | 2″ | — |
| 50° Relief Bevel | 6-1/4″ | 7/8″ | — |
| 40/40 Gouge | 7″ | 7/8″ | — |
| 40° Traditional Spindle Gouge | 5″ | None | 3/4″ |
Settings for Ellsworth jigs
| Tool | Gauge Block |
|---|---|
| Calibration | 1-1/2″ |
| 60° Bowl Gouge | 1/1/2″ |
| 70° Micro-bevel | 2″ |
| 50° Relief Bevel | 7/8″ |

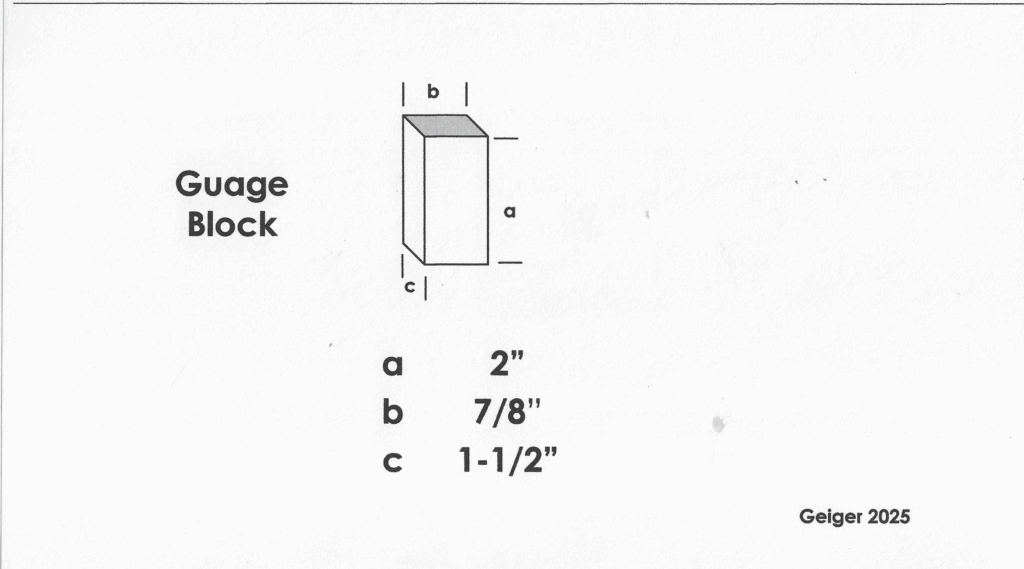

The Gauge Block Dimensions
